DAQ card - internal measuring, recording and test profile generating card for Test Towers
09.08.2016 21:37
According to customers request we integrated into Test Tower internal DAQ card.
The Labview compatible DAQ card is integrated to your ordered Test Tower.

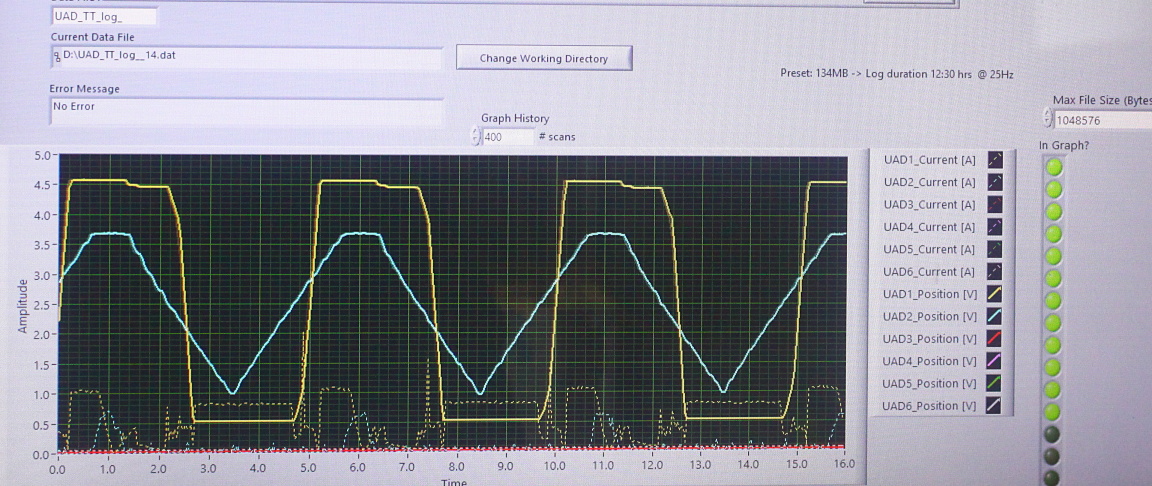

This card will be conected to internal USB Hub inside Test Tower. This hardware solution allows user to monitor using a LabView VI or 3rd party masurement software following parameters (sampling rate 1kHz, resolution 12 bit):
- 6x actuator DC motor current consumption [A]
- 6x actuator position sensor [V]
Aditionaly voltage signal can be generated and be used as position demand signal for all six actuators (instead of Ext. In. input).
e-Tronix will provide list of parameters and respective DAQ card chanel number for each parameter.
LJ UAD application for Test Tower - quick start guide:
